MILITARY COATINGS

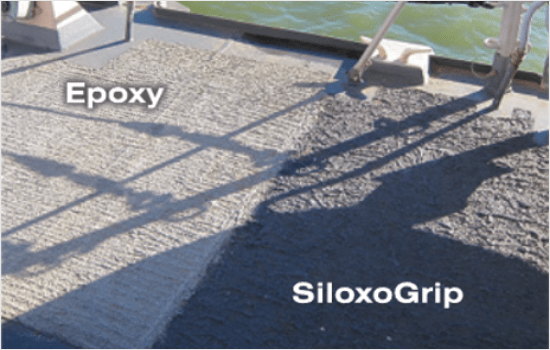

Polysiloxane Non-Slip Coatings

  • Two-component non-slip coating
  • Can be applied over epoxy primers
  • Outstanding color retention and abrasion resistance
  • Expected service life over 60 months
  • Applied to various US navy vessels, platforms and submmarines

Polysiloxane Top Coating System

  • One-component sealer and top coating
  • Outstanding color and gloss retention
  • Retains heat with low solar heat absorption
  • Environmentally friendly: Free of isocyanates, HAPs and low VOCs
  • Outstanding abrasion and chemical resistance

Temp-Coat 101

  • Approved by both US and Royal navy and 83% of product approval rating in the market with the highest portion
  • The longest-running insulation coating in the market with 25 years of experience
  • Temp-Coat products utilize high-quality ingredients and resin systems and 10 year warranty
  • All ingredients are TSCA registered and non-hazardous
  • Twice the elongation and thermal conductivity of competing products
  • Certified by Lloyds and the Russian Maritime Register of Shipping

Temp-Coat 101 vs Third Party Product A vs Third Party Product B

Item Temp-Coat 101 Third Party Product A Third Party Product B Explanation
Thermal Conductivity 0.23 Btu-in/ft2-hr-°F
(0.033 W/m/K)		 0.4381 Btu-in/ft2-hr-°F
(0.0698 W/m/K)		 0.8153 Btu-in/ft2-hr-°F
(0.1176 W/m/K)		 The lower thermal conductivity and better insulation performance
Approvals Lloyds (IMO) Lloyds, DNV, ABS (IMO) Data not verified IMO (Such as DNV, Lloyds, ABS)
Dry film range 20mils: 66.6 ft2 / gal 20mils: 50-55 ft2 / gal Data not verified With the same thickness, TEMP-COAT 101 application area is larger
Ceramic content 83% 80-82% 81-83% The higher the content, the better application range and insulation performance

SR-1000

  • SR-1000 is a high-performance coating specifically designed to eliminate unwanted sound and vibration. It converts noise and vibration into low-level heat, dissipating it across the entire surface.
  • Approved by US Coast guard
  • Listed on Mil-Spec required materials
  • Higher solids content than other manufacturers (approximately 75% solids content or more)
  • Material savings approximately 20% compared to typical competitive products
RELATIVE DAMPING IMPROVEMENT IN dB (Coating thickness is the same at 1mm)
Frequency Hz SR1000 Third party product
150 8.62 4
350 10.85 5.8
650 11.2 5.3
1000 12.4 5.7

MDF-200®
Bacteria and Virus inhibitor

MDF-200 is stronger than household disinfectants and safer than bleach
  • Effective in neutralizing chemical and biological agents, biological pathogens and various toxic industrial chemicals
  • Low toxicity and corrosiveness
  • Applicable to a variety of surfaces
  • Can be mixed with various carriers (foams, liquid sprays, mists etc)
Efficacy
  • 99.9% neutralization efficiency confirmed after 60 minutes against chemical warfare agents (GD, VX, HD) and toxic industrial chemicals(TICs)
  • Bateria killing confirmed after 15 minutes against biological warfare agents (anthrax, plague)
  • Quantitative and chemical inactivation confirmed against viruses (BCV)
  • Complete killing and regrowth prevention of mold (toxic mold Stachybotrys) spores within 5-10 minutes

MIL-DTL-53022 TYPE IV,
CLASS L

  • N-8959
  • Lead(Pb), Chromium(Cr) free epoxy primer -> Chromate-free and HAPS-free epoxy primer
  • Compatible with polyurethane topcoats
  • High solids content
  • Excellent corrosion resistance
